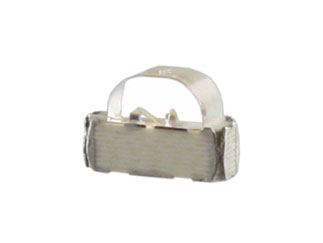

Kingbright | APBA3010SURKCGKC-GX

制造商型号

APBA3010SURKCGKC-GX

Red/Green 3 x 1 x 2 mm 140° Clear 300/70 mcd 2.5 V Right Angle Chip LED SMT

ECAD模型:
制造商: Kingbright
标准包装:
Product Variant Information section
Date Code: 2251
Product Specification Section
Kingbright APBA3010SURKCGKC-GX - 属性参数
Attributes Table
No of LEDs: 2
Color: Red / Green
Lens Type: Clear
Forward Voltage: 2.5V
Forward (Drive) Current: 20mA
Intensity: 300mcd/70mcd
Viewing Angle: 140°
Wavelength: 645nm/574nm
Rated Power: 75mW
Operating Temp Range: -40°C to +85°C
Storage Temperature Range: -40°C to +85°C
Dimension: H  2mm x L  3mm x W  1mm
Moisture Sensitivity Level: 3
安装方式： Surface Mount
特性和应用

The APBA3010SURKCGKC-GX is a High efficency right angle red/green color surface mount chip LED with water clear lens.

Features:

  • 3.0 mmx1.0 mm right angle SMT LED, 2.0 mm thickness.
  • Low power consumption.
  • Wide viewing angle.
  • Ideal for backlight and indicator.
  • Various colors and lens types available
  • Moisture sensitivity level : level 3.
  • RoHS compliant.

Applications:

  • Process controls
  • Automation
  • Medical Equipment
  • Handheld devices

View the APB3010 series of surface mount chip LED

Pricing Section
全球库存:
22,000
美国仓库 (线上独占库存):
22,000
在途：Order inventroy details
30,000
工厂库存：工厂库存：
0
工厂货期：
N/A
起订量：
2000
递增量：
2000
总价
¥ 2,176.00
CNY

所有价格均包含13%增值税。

数量
价格
2,000
¥1.088
4,000
¥1.0632
6,000
¥1.0467
8,000
¥1.0385
10,000+
¥1.0138
